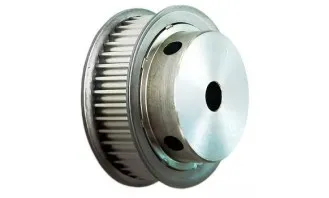

2mm GT2 Pitch (Metric)

Timing Belt Pulleys

There are 56 products.

Part Number	Material	Pitch	No. of Grooves	Pitch dia. [mm]	Outside dia. [mm]	Flange O.D. [mm]	Hub Type	Belt Width [mm]	Type	Bore [mm] (+.025 - .000)	Face Width [mm]	Overall Length [mm]	Hub Proj. [mm]	Hub Dia. [mm]	Set Screws
12-2GT06-6A X 3MM	Aluminum	2mm GT2	12	7.6	7.14	12.2	Set Screw	6	6FC	3.0	7.2	14.3	6.0	12.2	M2 (1)
12-2GT09-6A X 3MM	Aluminum	2mm GT2	12	7.6	7.14	12.2	Set Screw	9	6FC	3.0	10.4	17.5	6.0	12.2	M2 (1)
14-2GT06-6A X 3MM	Aluminum	2mm GT2	14	8.9	8.41	13.5	Set Screw	6	6FC	3.0	7.2	14.3	6.0	13.5	M2 (1)
14-2GT09-6A X 3MM	Aluminum	2mm GT2	14	8.9	8.41	13.5	Set Screw	9	6FC	3.0	10.4	17.5	6.0	13.5	M2 (1)
15-2GT06-6A X 4MM	Aluminum	2mm GT2	15	9.6	9.04	14.1	Set Screw	6	6FC	4.0	7.2	14.3	6.0	14.1	M2.5 (1)
15-2GT09-6A X 4MM	Aluminum	2mm GT2	15	9.6	9.04	14.1	Set Screw	9	6FC	4.0	10.4	17.5	6.0	14.1	M2.5 (1)
16-2GT06-6A X 4MM	Aluminum	2mm GT2	16	10.2	9.68	14.7	Set Screw	6	6FC	4.0	7.2	14.3	6.0	14.7	M2.5 (1)
16-2GT09-6A X 4MM	Aluminum	2mm GT2	16	10.2	9.68	14.7	Set Screw	9	6FC	4.0	10.4	17.5	6.0	14.7	M2.5 (1)
18-2GT06-1A X 4MM	Aluminum	2mm GT2	18	11.5	10.95	16.1	Set Screw	6	6F	4.0	9.9	15.9	6.0	7.9	M2.5 (2)
18-2GT06-6A X 6MM	Aluminum	2mm GT2	18	11.5	10.95	16.1	Set Screw	6	6FC	6.0	7.2	14.3	6.0	16.1	M3 (2)
18-2GT09-1A X 4MM	Aluminum	2mm GT2	18	11.5	10.95	16.1	Set Screw	9	6F	4.0	13.1	19.1	6.0	7.9	M2.5 (2)
18-2GT09-6A X 6MM	Aluminum	2mm GT2	18	11.5	10.95	16.1	Set Screw	9	6FC	6.0	10.4	17.5	6.0	16.1	M3 (2)
20-2GT06-1A X 4MM	Aluminum	2mm GT2	20	12.7	12.22	17.4	Set Screw	6	6F	4.0	9.9	15.9	6.0	9.2	M2.5 (2)
20-2GT06-6A X 6MM	Aluminum	2mm GT2	20	12.7	12.22	17.4	Set Screw	6	6FC	6.0	7.2	14.3	6.0	17.4	M3 (2)
20-2GT09-1A X 4MM	Aluminum	2mm GT2	20	12.7	12.22	17.4	Set Screw	9	6F	4.0	13.1	19.1	6.0	9.2	M2.5 (2)
20-2GT09-6A X 6MM	Aluminum	2mm GT2	20	12.7	12.22	17.4	Set Screw	9	6FC	6.0	10.4	17.5	6.0	17.4	M3 (2)
21-2GT06-1A X 4MM	Aluminum	2mm GT2	21	13.4	12.85	18.0	Set Screw	6	6F	4.0	9.9	15.9	6.0	9.9	M2.5 (2)
21-2GT06-6A X 6MM	Aluminum	2mm GT2	21	13.4	12.85	18.0	Set Screw	6	6FC	6.0	7.2	14.3	6.0	18.0	M3 (2)
21-2GT09-1A X 4MM	Aluminum	2mm GT2	21	13.4	12.85	18.0	Set Screw	9	6F	4.0	13.1	19.1	6.0	9.9	M2.5 (2)
21-2GT09-6A X 6MM	Aluminum	2mm GT2	21	13.4	12.85	18.0	Set Screw	9	6FC	6.0	10.4	17.5	6.0	18.0	M3 (2)
22-2GT06-1A X 4MM	Aluminum	2mm GT2	22	14.0	13.49	18.8	Set Screw	6	6F	4.0	9.9	15.9	6.0	9.9	M2.5 (2)
22-2GT06-6A X 6MM	Aluminum	2mm GT2	22	14.0	13.49	18.8	Set Screw	6	6FC	6.0	7.2	14.3	6.0	18.8	M3 (2)
22-2GT09-1A X 4MM	Aluminum	2mm GT2	22	14.0	13.49	18.8	Set Screw	9	6F	4.0	13.1	19.1	6.0	9.9	M2.5 (2)
22-2GT09-6A X 6MM	Aluminum	2mm GT2	22	14.0	13.49	18.8	Set Screw	9	6FC	6.0	10.4	17.5	6.0	18.8	M3 (2)
24-2GT06-1A X 6MM	Aluminum	2mm GT2	24	15.3	14.78	20.1	Set Screw	6	6F	6.0	9.9	17.5	7.5	11.2	M3 (2)
24-2GT09-1A X 6MM	Aluminum	2mm GT2	24	15.3	14.78	20.1	Set Screw	9	6F	6.0	13.1	20.6	7.5	11.2	M3 (2)
28-2GT06-1A X 6MM	Aluminum	2mm GT2	28	17.8	17.32	22.7	Set Screw	6	6F	6.0	9.9	17.5	7.5	12.5	M3 (2)
28-2GT09-1A X 6MM	Aluminum	2mm GT2	28	17.8	17.32	22.7	Set Screw	9	6F	6.0	13.1	20.6	7.5	12.5	M3 (2)
30-2GT06-1A X 6MM	Aluminum	2mm GT2	30	19.1	18.59	24.0	Set Screw	6	6F	6.0	9.9	17.5	7.5	13.9	M3 (2)
30-2GT09-1A X 6MM	Aluminum	2mm GT2	30	19.1	18.59	24.0	Set Screw	9	6F	6.0	13.1	20.6	7.5	13.9	M3 (2)
32-2GT06-1A X 6MM	Aluminum	2mm GT2	32	20.4	19.86	25.4	Set Screw	6	6F	6.0	9.9	17.5	7.5	15.2	M3 (2)
32-2GT09-1A X 6MM	Aluminum	2mm GT2	32	20.4	19.86	25.4	Set Screw	9	6F	6.0	13.1	20.6	7.5	15.2	M3 (2)
36-2GT06-1A X 6MM	Aluminum	2mm GT2	36	23.0	22.40	28.1	Set Screw	6	6F	6.0	9.9	17.5	7.5	17.2	M3 (2)
36-2GT09-1A X 6MM	Aluminum	2mm GT2	36	23.0	22.40	28.1	Set Screw	9	6F	6.0	13.1	20.6	7.5	17.2	M3 (2)
40-2GT06-1A X 6MM	Aluminum	2mm GT2	40	25.5	24.97	30.7	Set Screw	6	6F	6.0	10.3	18.3	7.9	19.2	M3 (2)
40-2GT09-1A X 6MM	Aluminum	2mm GT2	40	25.5	24.97	30.7	Set Screw	9	6F	6.0	13.5	21.4	7.9	19.2	M3 (2)
42-2GT06-1A X 6MM	Aluminum	2mm GT2	42	26.7	26.24	32.0	Set Screw	6	6F	6.0	10.3	18.3	7.9	20.5	M3 (2)
42-2GT09-1A X 6MM	Aluminum	2mm GT2	42	26.7	26.24	32.0	Set Screw	9	6F	6.0	13.5	21.4	7.9	20.5	M3 (2)
44-2GT06-1A X 6MM	Aluminum	2mm GT2	44	28.0	27.51	33.4	Set Screw	6	6F	6.0	10.3	18.3	7.9	21.8	M3 (2)
44-2GT09-1A X 6MM	Aluminum	2mm GT2	44	28.0	27.51	33.4	Set Screw	9	6F	6.0	13.5	21.4	7.9	21.8	M3 (2)
48-2GT06-1A X 6MM	Aluminum	2mm GT2	48	30.6	30.05	36.1	Set Screw	6	6F	6.0	10.3	18.3	7.9	23.8	M3 (2)
48-2GT09-1A X 6MM	Aluminum	2mm GT2	48	30.6	30.05	36.1	Set Screw	9	6F	6.0	13.5	21.4	7.9	23.8	M3 (2)
60-2GT06-1A X 6MM	Aluminum	2mm GT2	60	38.2	37.69	43.9	Set Screw	6	6F	6.0	10.3	18.3	7.9	31.0	M3 (2)
60-2GT06-2A X 6MM	Aluminum	2mm GT2	60	38.2	37.69	NA	Set Screw	6	6	6.0	9.5	19.1	-	29.2	M3 (2)
60-2GT09-1A X 6MM	Aluminum	2mm GT2	60	38.2	37.69	43.9	Set Screw	9	6F	6.0	13.5	21.4	7.9	31.0	M3 (2)
60-2GT09-2A X 6MM	Aluminum	2mm GT2	60	38.2	37.69	NA	Set Screw	9	6	6.0	12.7	22.2	-	29.2	M3 (2)
72-2GT06-2A X 6MM	Aluminum	2mm GT2	72	45.9	45.34	NA	Set Screw	6	6	6.0	9.5	19.1	-	30.4	M3 (2)
72-2GT09-2A X 6MM	Aluminum	2mm GT2	72	45.9	45.34	NA	Set Screw	9	6	6.0	12.7	22.2	-	30.4	M3 (2)
80-2GT06-2A X 8MM	Aluminum	2mm GT2	80	51.0	50.42	NA	Set Screw	6	6	8.0	9.5	19.1	-	38.1	M4 (2)
80-2GT09-2A X 8MM	Aluminum	2mm GT2	80	51.0	50.42	NA	Set Screw	9	6	8.0	12.7	22.2	-	38.1	M4 (2)
90-2GT06-2A X 8MM	Aluminum	2mm GT2	90	57.3	56.79	NA	Set Screw	6	6	8.0	9.5	19.1	-	38.1	M4 (2)
90-2GT09-2A X 8MM	Aluminum	2mm GT2	90	57.3	56.79	NA	Set Screw	9	6	8.0	12.7	22.2	-	38.1	M4 (2)
100-2GT06-2A X 8MM	Aluminum	2mm GT2	100	63.7	63.14	NA	Set Screw	6	6	8.0	9.5	19.1	-	38.1	M4 (2)
100-2GT09-2A X 8MM	Aluminum	2mm GT2	100	63.7	63.14	NA	Set Screw	9	6	8.0	12.7	22.2	-	38.1	M4 (2)
120-2GT06-2A X 10MM	Aluminum	2mm GT2	120	76.4	75.90	NA	Set Screw	6	6	10.0	9.5	19.1	-	38.1	M5 (2)
120-2GT09-2A X 10MM	Aluminum	2mm GT2	120	76.4	75.90	NA	Set Screw	9	6	10.0	12.7	22.2	-	38.1	M5 (2)
