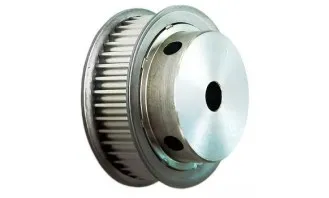

3mm GT2 Pitch (Metric)

Timing Belt Pulleys

There are 58 products.

Part Number	Material	Pitch	No. of Grooves	Pitch dia. [mm]	Outside dia. [mm]	Flange O.D. [mm]	Hub Type	Belt Width [mm]	Type	Bore [mm] (+.001 - .000)	Face Width [mm]	Overall Length [mm]	Hub Proj. [mm]	Hub Dia. [mm]	Set Screws
16-3GT09-6A X 6MM	Aluminum	3mm GT2	16	15.3	14.53	18.0	Set Screw	9	6FC	6.0	16.2	23.5	6.0	18.0	M2(2)
16-3GT15-6A X 6MM	Aluminum	3mm GT2	16	15.3	14.53	18.0	Set Screw	15	6FC	6.0	10.2	17.6	6.0	18.0	M2(2)
17-3GT09-6A X 6MM	Aluminum	3mm GT2	17	16.2	15.47	18.8	Set Screw	9	6FC	6.0	16.2	23.5	6.0	18.8	M2(2)
17-3GT15-6A X 6MM	Aluminum	3mm GT2	17	16.2	15.47	18.8	Set Screw	15	6FC	6.0	10.2	17.6	6.0	18.8	M2(2)
18-3GT09-1A X 4MM	Aluminum	3mm GT2	18	17.2	16.43	20.1	Set Screw	9	6F	6.0	18.8	26.8	8.0	11.2	M2.5 (2)
18-3GT15-1A X 4MM	Aluminum	3mm GT2	18	17.2	16.43	20.1	Set Screw	15	6F	6.0	12.9	20.9	8.0	11.2	M2.5 (2)
19-3GT09-1A X 4MM	Aluminum	3mm GT2	19	18.1	17.37	21.0	Set Screw	9	6F	6.0	18.8	26.8	8.0	12.2	M2.5 (2)
19-3GT15-1A X 4MM	Aluminum	3mm GT2	19	18.1	17.37	21.0	Set Screw	15	6F	6.0	12.9	20.9	8.0	12.2	M2.5 (2)
20-3GT09-1A X 4MM	Aluminum	3mm GT2	20	19.1	18.34	22.7	Set Screw	9	6F	6.0	18.8	26.8	8.0	12.7	M2.5 (2)
20-3GT15-1A X 4MM	Aluminum	3mm GT2	20	19.1	18.34	22.7	Set Screw	15	6F	6.0	12.9	20.9	8.0	12.7	M2.5 (2)
21-3GT09-1A X 4MM	Aluminum	3mm GT2	21	20.1	19.30	22.7	Set Screw	9	6F	6.0	18.8	26.8	8.0	12.7	M2.5 (2)
21-3GT15-1A X 4MM	Aluminum	3mm GT2	21	20.1	19.30	22.7	Set Screw	15	6F	6.0	12.9	20.9	8.0	12.7	M2.5 (2)
22-3GT09-1A X 4MM	Aluminum	3mm GT2	22	21.0	20.24	24.0	Set Screw	9	6F	6.0	18.8	26.8	8.0	14.3	M2.5 (2)
22-3GT15-1A X 4MM	Aluminum	3mm GT2	22	21.0	20.24	24.0	Set Screw	15	6F	6.0	12.9	20.9	8.0	14.3	M2.5 (2)
24-3GT09-1A X 6MM	Aluminum	3mm GT2	24	22.9	22.15	26.0	Set Screw	9	6F	6.0	18.8	26.8	8.0	15.9	M3 (2)
24-3GT15-1A X 6MM	Aluminum	3mm GT2	24	22.9	22.15	26.0	Set Screw	15	6F	6.0	12.9	20.9	8.0	15.9	M3 (2)
25-3GT09-1A X 6MM	Aluminum	3mm GT2	25	23.9	23.11	26.9	Set Screw	9	6F	6.0	18.8	26.8	8.0	15.9	M3 (2)
25-3GT15-1A X 6MM	Aluminum	3mm GT2	25	23.9	23.11	26.9	Set Screw	15	6F	6.0	12.9	20.9	8.0	15.9	M3 (2)
26-3GT09-1A X 6MM	Aluminum	3mm GT2	26	24.8	24.05	28.1	Set Screw	9	6F	6.0	18.8	26.8	8.0	15.9	M3 (2)
26-3GT15-1A X 6MM	Aluminum	3mm GT2	26	24.8	24.05	28.1	Set Screw	15	6F	6.0	12.9	20.9	8.0	15.9	M3 (2)
28-3GT09-1A X 6MM	Aluminum	3mm GT2	28	26.7	25.98	29.8	Set Screw	9	6F	6.0	18.8	26.8	8.0	17.8	M3 (2)
28-3GT15-1A X 6MM	Aluminum	3mm GT2	28	26.7	25.98	29.8	Set Screw	15	6F	6.0	12.9	20.9	8.0	17.8	M3 (2)
30-3GT09-1A X 6MM	Aluminum	3mm GT2	30	28.7	27.89	31.8	Set Screw	9	6F	6.0	18.8	26.8	8.0	19.7	M3 (2)
30-3GT15-1A X 6MM	Aluminum	3mm GT2	30	28.7	27.89	31.8	Set Screw	15	6F	6.0	12.9	20.9	8.0	19.7	M3 (2)
32-3GT09-1A X 6MM	Aluminum	3mm GT2	32	30.6	29.79	33.6	Set Screw	9	6F	6.0	18.8	26.8	8.0	21.6	M3 (2)
32-3GT15-1A X 6MM	Aluminum	3mm GT2	32	30.6	29.79	33.6	Set Screw	15	6F	6.0	12.9	20.9	8.0	21.6	M3 (2)
34-3GT09-1A X 6MM	Aluminum	3mm GT2	34	32.5	31.70	35.5	Set Screw	9	6F	6.0	19.4	27.2	7.8	23.4	M3 (2)
34-3GT15-1A X 6MM	Aluminum	3mm GT2	34	32.5	31.70	35.5	Set Screw	15	6F	6.0	13.4	21.2	7.8	23.4	M3 (2)
36-3GT09-1A X 6MM	Aluminum	3mm GT2	36	34.4	33.60	37.5	Set Screw	9	6F	6.0	19.4	27.2	7.8	25.4	M3 (2)
36-3GT15-1A X 6MM	Aluminum	3mm GT2	36	34.4	33.60	37.5	Set Screw	15	6F	6.0	13.4	21.2	7.8	25.4	M3 (2)
38-3GT09-1A X 6MM	Aluminum	3mm GT2	38	36.3	35.53	39.3	Set Screw	9	6F	6.0	19.4	27.2	7.8	27.3	M3 (2)
38-3GT15-1A X 6MM	Aluminum	3mm GT2	38	36.3	35.53	39.3	Set Screw	15	6F	6.0	13.4	21.2	7.8	27.3	M3 (2)
40-3GT09-1A X 6MM	Aluminum	3mm GT2	40	38.2	37.44	41.3	Set Screw	9	6F	6.0	19.4	27.2	7.8	29.2	M3 (2)
40-3GT15-1A X 6MM	Aluminum	3mm GT2	40	38.2	37.44	41.3	Set Screw	15	6F	6.0	13.4	21.2	7.8	29.2	M3 (2)
42-3GT09-1A X 6MM	Aluminum	3mm GT2	42	40.1	39.34	43.9	Set Screw	9	6F	6.0	19.4	27.2	7.8	29.2	M3 (2)
42-3GT15-1A X 6MM	Aluminum	3mm GT2	42	40.1	39.34	43.9	Set Screw	15	6F	6.0	13.4	21.2	7.8	29.2	M3 (2)
44-3GT09-1A X 6MM	Aluminum	3mm GT2	44	42.0	41.25	45.1	Set Screw	9	6F	6.0	19.4	27.2	7.8	31.8	M3 (2)
44-3GT15-1A X 6MM	Aluminum	3mm GT2	44	42.0	41.25	45.1	Set Screw	15	6F	6.0	13.4	21.2	7.8	31.8	M3 (2)
45-3GT09-1A X 6MM	Aluminum	3mm GT2	45	43.0	42.21	45.1	Set Screw	9	6F	6.0	19.4	27.2	7.8	31.8	M3 (2)
45-3GT15-1A X 6MM	Aluminum	3mm GT2	45	43.0	42.21	45.1	Set Screw	15	6F	6.0	13.4	21.2	7.8	31.8	M3 (2)
48-3GT09-2A X 8MM	Aluminum	3mm GT2	48	45.8	45.09	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
48-3GT15-2A X 8MM	Aluminum	3mm GT2	48	45.8	45.09	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
50-3GT09-2A X 8MM	Aluminum	3mm GT2	50	47.8	46.99	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
50-3GT15-2A X 8MM	Aluminum	3mm GT2	50	47.8	46.99	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
56-3GT09-2A X 8MM	Aluminum	3mm GT2	56	53.5	52.71	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
56-3GT15-2A X 8MM	Aluminum	3mm GT2	56	53.5	52.71	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
60-3GT09-2A X 8MM	Aluminum	3mm GT2	60	57.3	56.54	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
60-3GT15-2A X 8MM	Aluminum	3mm GT2	60	57.3	56.54	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
62-3GT09-2A X 8MM	Aluminum	3mm GT2	62	59.2	58.45	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
62-3GT15-2A X 8MM	Aluminum	3mm GT2	62	59.2	58.45	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
68-3GT09-2A X 8MM	Aluminum	3mm GT2	68	64.9	64.19	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
68-3GT15-2A X 8MM	Aluminum	3mm GT2	68	64.9	64.19	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
72-3GT09-2A X 8MM	Aluminum	3mm GT2	72	68.8	68.00	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
72-3GT15-2A X 8MM	Aluminum	3mm GT2	72	68.8	68.00	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
74-3GT09-2A X 8MM	Aluminum	3mm GT2	74	70.7	69.90	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
74-3GT15-2A X 8MM	Aluminum	3mm GT2	74	70.7	69.90	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)
80-3GT09-2A X 8MM	Aluminum	3mm GT2	80	76.4	75.64	NA	Set Screw	9	6	8.0	12.7	22.2	9.5	31.8	M4 (2)
80-3GT15-2A X 8MM	Aluminum	3mm GT2	80	76.4	75.64	NA	Set Screw	15	6	8.0	18.7	28.2	9.5	31.8	M4 (2)

Download CAD / PDF
