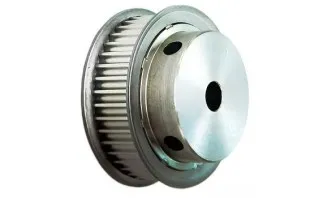

5mm HTD Pitch (Metric)
Timing Belt Pulleys
There are 44 products.
| Part Number | Material | Pitch | No. of Grooves | Pitch dia. [mm] | Outside dia. [mm] | Flange O.D. [mm] | Hub Type | Belt Width [mm] | Type | Bore [mm] (+.001 - .000) | Face Width [mm] | Overall Length [mm] | Hub Proj. [mm] | Hub Dia. [mm] | Set Screws | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-5M09-1A X 6MM | Aluminum | 5mm HTD | 14 | 22.2 | 21.13 | 25.4 | Set Screw | 9 | 6F | 6.0 | 13.9 | 20.1 | 6.2 | 12.7 | M3 (2) | |
| 14-5M15-1A X 6MM | Aluminum | 5mm HTD | 14 | 22.2 | 21.13 | 25.4 | Set Screw | 15 | 6F | 6.0 | 19.8 | 26.0 | 6.2 | 12.7 | M3 (2) | |
| 15-5M09-1A X 6MM | Aluminum | 5mm HTD | 15 | 23.8 | 22.73 | 27.0 | Set Screw | 9 | 6F | 6.0 | 13.9 | 20.1 | 6.2 | 14.3 | M3 (2) | |
| 15-5M15-1A X 6MM | Aluminum | 5mm HTD | 15 | 23.8 | 22.73 | 27.0 | Set Screw | 15 | 6F | 6.0 | 19.8 | 26.0 | 6.2 | 14.3 | M3 (2) | |
| 16-5M09-1A X 6MM | Aluminum | 5mm HTD | 16 | 25.4 | 24.33 | 27.8 | Set Screw | 9 | 6F | 6.0 | 13.9 | 20.1 | 6.2 | 14.3 | M3 (2) | |
| 16-5M15-1A X 6MM | Aluminum | 5mm HTD | 16 | 25.4 | 24.33 | 27.8 | Set Screw | 15 | 6F | 6.0 | 19.8 | 26.0 | 6.2 | 14.3 | M3 (2) | |
| 17-5M09-1A X 8MM | Aluminum | 5mm HTD | 17 | 27.0 | 25.91 | 30.1 | Set Screw | 9 | 6F | 8.0 | 13.9 | 20.1 | 6.2 | 15.9 | M4 (2) | |
| 17-5M15-1A X 8MM | Aluminum | 5mm HTD | 17 | 27.0 | 25.91 | 30.1 | Set Screw | 15 | 6F | 8.0 | 19.8 | 26.0 | 6.2 | 15.9 | M4 (2) | |
| 18-5M09-1A X 8MM | Aluminum | 5mm HTD | 18 | 28.6 | 27.51 | 31.8 | Set Screw | 9 | 6F | 8.0 | 13.9 | 20.1 | 6.2 | 17.5 | M4 (2) | |
| 18-5M15-1A X 8MM | Aluminum | 5mm HTD | 18 | 28.6 | 27.51 | 31.8 | Set Screw | 15 | 6F | 8.0 | 19.8 | 26.0 | 6.2 | 17.5 | M4 (2) | |
| 19-5M09-1A X 8MM | Aluminum | 5mm HTD | 19 | 30.2 | 29.11 | 33.4 | Set Screw | 9 | 6F | 8.0 | 13.9 | 20.1 | 6.2 | 19.1 | M4 (2) | |
| 19-5M15-1A X 8MM | Aluminum | 5mm HTD | 19 | 30.2 | 29.11 | 33.4 | Set Screw | 15 | 6F | 8.0 | 19.8 | 26.0 | 6.2 | 19.1 | M4 (2) | |
| 20-5M09-1A X 8MM | Aluminum | 5mm HTD | 20 | 31.8 | 30.68 | 34.9 | Set Screw | 9 | 6F | 8.0 | 13.9 | 20.1 | 6.2 | 20.7 | M4 (2) | |
| 20-5M15-1A X 8MM | Aluminum | 5mm HTD | 20 | 31.8 | 30.68 | 34.9 | Set Screw | 15 | 6F | 8.0 | 19.8 | 26.0 | 6.2 | 20.7 | M4 (2) | |
| 22-5M09-1A X 8MM | Aluminum | 5mm HTD | 22 | 35.0 | 33.88 | 38.1 | Set Screw | 9 | 6F | 8.0 | 13.9 | 20.1 | 6.2 | 23.8 | M4 (2) | |
| 22-5M15-1A X 8MM | Aluminum | 5mm HTD | 22 | 35.0 | 33.88 | 38.1 | Set Screw | 15 | 6F | 8.0 | 19.8 | 26.0 | 6.2 | 23.8 | M4 (2) | |
| 24-5M09-1A X 8MM | Aluminum | 5mm HTD | 24 | 38.2 | 37.06 | 41.3 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 25.4 | M4 (2) | |
| 24-5M15-1A X 8MM | Aluminum | 5mm HTD | 24 | 38.2 | 37.06 | 41.3 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 25.4 | M4 (2) | |
| 26-5M09-1A X 8MM | Aluminum | 5mm HTD | 26 | 41.4 | 40.23 | 44.5 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 27.0 | M4 (2) | |
| 26-5M15-1A X 8MM | Aluminum | 5mm HTD | 26 | 41.4 | 40.23 | 44.5 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 27.0 | M4 (2) | |
| 28-5M09-1A X 8MM | Aluminum | 5mm HTD | 28 | 44.5 | 43.41 | 47.6 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 30.2 | M4 (2) | |
| 28-5M15-1A X 8MM | Aluminum | 5mm HTD | 28 | 44.5 | 43.41 | 47.6 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 30.2 | M4 (2) | |
| 30-5M09-1A X 8MM | Aluminum | 5mm HTD | 30 | 47.8 | 46.61 | 50.8 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 30.2 | M4 (2) | |
| 30-5M15-1A X 8MM | Aluminum | 5mm HTD | 30 | 47.8 | 46.61 | 50.8 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 30.2 | M4 (2) | |
| 32-5M09-1A X 8MM | Aluminum | 5mm HTD | 32 | 50.9 | 49.78 | 54.0 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 31.8 | M4 (2) | |
| 32-5M15-1A X 8MM | Aluminum | 5mm HTD | 32 | 50.9 | 49.78 | 54.0 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 31.8 | M4 (2) | |
| 34-5M09-1A X 8MM | Aluminum | 5mm HTD | 34 | 54.1 | 52.96 | 57.2 | Set Screw | 9 | 6F | 8.0 | 13.9 | 21.6 | 7.7 | 34.9 | M4 (2) | |
| 34-5M15-1A X 8MM | Aluminum | 5mm HTD | 34 | 54.1 | 52.96 | 57.2 | Set Screw | 15 | 6F | 8.0 | 19.8 | 27.6 | 7.8 | 34.9 | M4 (2) | |
| 36-5M09-2A X 10MM | Aluminum | 5mm HTD | 36 | 57.3 | 56.16 | NA | Set Screw | 9 | 6 | 10.0 | 13.9 | 23.8 | 9.9 | 38.1 | M5 (2) | |
| 36-5M15-2A X 10MM | Aluminum | 5mm HTD | 36 | 57.3 | 56.16 | NA | Set Screw | 15 | 6 | 10.0 | 19.8 | 27.8 | 8.0 | 38.1 | M5 (2) | |
| 38-5M09-2A X 10MM | Aluminum | 5mm HTD | 38 | 60.5 | 59.33 | NA | Set Screw | 9 | 6 | 10.0 | 13.9 | 23.8 | 9.9 | 38.1 | M5 (2) | |
| 38-5M15-2A X 10MM | Aluminum | 5mm HTD | 38 | 60.5 | 59.33 | NA | Set Screw | 15 | 6 | 10.0 | 19.8 | 27.8 | 8.0 | 38.1 | M5 (2) | |
| 40-5M09-2A X 10MM | Aluminum | 5mm HTD | 40 | 63.6 | 62.51 | NA | Set Screw | 9 | 6 | 10.0 | 13.9 | 23.8 | 9.9 | 38.1 | M5 (2) | |
| 40-5M15-2A X 10MM | Aluminum | 5mm HTD | 40 | 63.6 | 62.51 | NA | Set Screw | 15 | 6 | 10.0 | 19.8 | 27.8 | 8.0 | 38.1 | M5 (2) | |
| 44-5M09-3A X 10MM | Aluminum | 5mm HTD | 44 | 70.0 | 68.88 | NA | Set Screw | 9 | 6W | 10.0 | 13.9 | 23.8 | 9.9 | 38.1 | M5 (2) | |
| 44-5M15-3A X 10MM | Aluminum | 5mm HTD | 44 | 70.0 | 68.88 | NA | Set Screw | 15 | 6W | 10.0 | 19.8 | 27.8 | 8.0 | 38.1 | M5 (2) | |
| 50-5M09-3A X 12MM | Aluminum | 5mm HTD | 50 | 79.6 | 78.44 | NA | Set Screw | 9 | 6W | 12.0 | 13.9 | 23.8 | 9.9 | 38.1 | M6 (2) | |
| 50-5M15-3A X 12MM | Aluminum | 5mm HTD | 50 | 79.6 | 78.44 | NA | Set Screw | 15 | 6W | 12.0 | 19.8 | 30.2 | 10.3 | 38.1 | M6 (2) | |
| 56-5M09-3A X 12MM | Aluminum | 5mm HTD | 56 | 89.1 | 87.99 | NA | Set Screw | 9 | 6W | 12.0 | 13.9 | 23.8 | 9.9 | 38.1 | M6 (2) | |
| 56-5M15-3A X 12MM | Aluminum | 5mm HTD | 56 | 89.1 | 87.99 | NA | Set Screw | 15 | 6W | 12.0 | 19.8 | 30.2 | 10.3 | 38.1 | M6 (2) | |
| 62-5M09-3A X 12MM | Aluminum | 5mm HTD | 62 | 98.7 | 97.54 | NA | Set Screw | 9 | 6W | 12.0 | 13.9 | 23.8 | 9.9 | 38.1 | M6 (2) | |
| 62-5M15-3A X 12MM | Aluminum | 5mm HTD | 62 | 98.7 | 97.54 | NA | Set Screw | 15 | 6W | 12.0 | 19.8 | 30.2 | 10.3 | 38.1 | M6 (2) | |
| 72-5M09-3A X 12MM | Aluminum | 5mm HTD | 72 | 114.6 | 113.44 | NA | Set Screw | 9 | 6W | 12.0 | 13.9 | 23.8 | 9.9 | 38.1 | M6 (2) | |
| 72-5M15-3A X 12MM | Aluminum | 5mm HTD | 72 | 114.6 | 113.44 | NA | Set Screw | 15 | 6W | 12.0 | 19.8 | 30.2 | 10.3 | 38.1 | M6 (2) |
